Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set

Marchio:	SANROCK POWER
Numero di modello:	SPDG20KW
MOQ:	1 set
Prezzo:	Chat with supplier now for more details.
Dettagli dell' imballaggio:	Pacchetto nudo per macchine, pacchetto in legno per pezzi di ricambio o domanda di clienti.
Condizioni di pagamento:	MoneyGram, Western Union, T/T, D/P, D/A, L/C

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Zhejiang, Cina

Certificazione:

CE;ISO

Document:

Nome del prodotto:

generatore di tipo aperto / generatore di tipo aperto

Frequenza:

50Hz/60Hz

Voltaggio:

48 V, 110 V, 220 V, 230 V, 240 V, 380 V, 400 V, 415 V, 480 V

Cilindro:

3/4/6/12-Secondo la potenza

Numero del cilindro:

3,4,6,8,12Cilinders

Numero di fase e connessione:

Sistema a 3 fasi e 4 fili

Sistema di raffreddamento:

Raffreddamento ad acqua

Dimensione dell'insieme (millimetri):

1485*700*1000mm~7300*2440*2800mm

Peso netto dell'insieme (chilogrammi):

Specificato

Potenza nominale (KW/1500RPM):

5-2250kva

Velocità:

1500/1800 giri/min

Tipo:

Tipo di trailer, tipo silenzioso, tipo di contenitore, tipo super silenzioso, frame aperto, tipo por

Potenza nominale:

20KW,30KW,40KW,50KW,80KW,100KW,200KW,300KW,800KW,1000KW,1200KW,1500KW,1800KW,2200KW

Applicazione:

Fabbrica, costruzione, fattoria, banca ecc

Utilizzo:

Unità comuni, unità in attesa

Colpo:

Colpo quattro

Logistica:

Trasporto dell'intera macchina o trasporto di smontaggio; Trasporto marittimo o ferroviario

Capacità di alimentazione:

100000set/mese

Evidenziare:

open frame diesel generator emergency

small diesel engine generator set

disaster relief diesel generator

Descrizione del prodotto

20KW Open-Frame Generator for Emergency Disaster Relief
Engineered for critical emergency response operations, this 20KW open-frame generator delivers reliable power in disaster-stricken areas where grid electricity is unavailable. Its robust construction and simple design make it ideally suited for rapid deployment in post-disaster scenarios, including earthquake zones, flood-affected regions, and hurricane-impacted areas.
Operational Advantages:
Rapid deployment capability for immediate power restoration
Fuel-efficient operation for extended use in resource-limited environments
Compatible with various fuel sources available in emergency situations
High reliability with minimal maintenance requirements
This 20KW generator serves as a vital power source for disaster relief teams, providing the essential electricity needed to save lives and support recovery efforts when conventional power infrastructure is compromised.
Critical Applications:
Powers emergency medical tents, field hospitals, and mobile clinics
Supports rescue equipment, communication systems, and lighting setups
Provides electricity for water purification systems and temporary shelters
Energizes charging stations for essential electronic devices
Emergency-Adapted Features: The generator's open-frame design ensures excellent heat dissipation during continuous operation and allows for quick maintenance and repairs—even in challenging field conditions. Its durable steel frame provides protection during transport over rough terrain, while the simple mechanical design enables operation by personnel with basic training.

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set 11

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set 12

Applicable Industries
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant,
Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company.

Product descriptions from the supplier
100KVA 150KVA 200KVA 300KVA 400KVA 500KVA 700KVA Diesel Genset
"Contact us for specific product details or customized requirements"

Product Description

Technical parameters of diesel generator set
Generator set model:SPDG20KW
Steady state voltage adjustment rate (%):≤± 1
Generator power:20kW/25kVA
Voltage fluctuation rate (%):≤ ± 0.5
Power factor:COSΦ = 0.8 (lagging)
Transient voltage adjustment rate (%):＋20 ～－15
Output voltage:400V/230V
Voltage stabilization time (s):≤1
Generator set current:36A
Steady state frequency adjustment rate (%):≤ ± 1
Rated frequency:50Hz
Frequency fluctuation rate (%):≤ ± 0.5
Rated speed:1500rpm
Transient frequency adjustment rate (%):+ 10 ~ -7
Fuel grade:(standard) 0 # light diesel (normal temperature)
Frequency stabilization time (S):≤3
Diesel generator size:1620*620*1380(L*W*H mm
Diesel generator fuel consumption (100% load):224g/kW·h
Diesel generator weight:600kg
Diesel generator volume(LP7m):95dB(A)
Technical parameters of diesel engine
Cooling method: Closed water-cooling
Oil supply method: direct injection
Engine cylinder number: 4 / L Type
Speed regulation method: Mechanical
Bore stroke: 102*120mm
Intake method: Natural inhalation
Compression ratio: 16.5:1
Overload capacity: 110%
Start method:DC 24V Electric start
Diesel engines Speed: 1500rpm
Technical parameters of generator
Protection level:IP22
Wiring mode:Three-phase four-wire, Y-connection
Generator power: 20kW/25kVA
Adjustment method: AVR (Automatic Voltage Regulator)
Rated voltage: 400V / 230V
Output frequency: 50Hz
Insulation class: H class
Output factor: COSΦ = 0.8 (lag)

Product Name	Diesel generator
Engine	customized
Alternator	customized
Protection	genset shotdown when high water temperature,low oil pressure,shortcuit
Rated Power	20KW,30KW,40KW,50KW,80KW,100KW,200KW,300KW,800KW,1000KW,1200KW,1500KW, 1800KW,2200KW
Cylinder number	3,4,6,8,12cylinders
Cooling System Type	Water Cooling System
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Rated Voltage	48V, 110V, 220V, 230V, 240V, 380V, 400V, 415V, 480V
Speed	1500/1800
Frequency	50/60HZ
Diesel Engine	UK, USA, German, Japanese brand engines,4 stroke,water cooled
Alternator model	Stamford/Mecc alte brushless self-excited,IP23,Class H.
Power factor	0.8lagging
Noise level dB(a)	65-95/1m
Excitation	self-excitation
Phase Number and connection	3-phase 4-wire system
Dimension of set (mm)	*14857001000mm~730024402800mm*

Customizable Options: SANROCK POWER Machinery Co., Ltd., offers various customization options for their products, including different genset power and frequency settings. This flexibility allows users to select the most appropriate equipment for their specific requirements, ensuring optimal performance and energy efficiency.

SANROCK POWER Machinery is committed to offering competitive prices without compromising on quality. Their products come with a 3-year warranty period, which provides customers with the assurance and peace of mind necessary to confidently purchase and utilize their generators.

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set 13

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set 14

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set 15

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set 16

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set 17

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set 18

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set 19

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set 20

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set 21

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set 22

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set 23

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set 24

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set 25

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set 26

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set 27

FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

2.what can you buy from us?
Screw Air Compressor,Reefer Container Generator,Diesel Generator,Light Tower,Sewage Pump,Centrifugal Pump,Fire Pump System,Mobile Pump Truck

3. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish

Tag:

tipo aperto generatore diesel

generatore aperto

Gruppo elettrogeno aperto

Prodotti correlati

Video

Manufacturer Diesel Engine Generator Set 220V Rated Voltage Diesel Powered Generator Portable Generators Diesel

Ottenga il migliore prezzo

Video

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator

Ottenga il migliore prezzo

Video

Open Frame Diesel Generators Mobile Diesel Generator Water Cooled Commonly Used Small Diesel Generator Set

Ottenga il migliore prezzo

Video

Portable Diesel Generator Single Cylinder Diesel Generator High Performance Open Frame Diesel Generator

Ottenga il migliore prezzo

Video

Diesel Generator Set Data Centers Emergency Diesel Driven Generator Trailer Mounted Diesel Generator

Ottenga il migliore prezzo

Dettagli dei prodotti

Casa > prodotti >

Generatore diesel della struttura aperta

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set

Tutte le categorie

Generatore diesel

Generatore diesel della struttura aperta

Generatore diesel silenzioso

Generatore Reefer

Torre faro mobile

torre di illuminazione diesel

torre di luce solare mobile

Insieme della pompa idraulica

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set

Marchio:	SANROCK POWER
Numero di modello:	SPDG20KW
MOQ:	1 set
Prezzo:	Chat with supplier now for more details.
Dettagli dell' imballaggio:	Pacchetto nudo per macchine, pacchetto in legno per pezzi di ricambio o domanda di clienti.
Condizioni di pagamento:	MoneyGram, Western Union, T/T, D/P, D/A, L/C

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Zhejiang, Cina

Marca:

SANROCK POWER

Certificazione:

CE;ISO

Numero di modello:

SPDG20KW

Document:

Diesel Generators.pdf

Nome del prodotto:

generatore di tipo aperto / generatore di tipo aperto

Frequenza:

50Hz/60Hz

Voltaggio:

48 V, 110 V, 220 V, 230 V, 240 V, 380 V, 400 V, 415 V, 480 V

Cilindro:

3/4/6/12-Secondo la potenza

Numero del cilindro:

3,4,6,8,12Cilinders

Numero di fase e connessione:

Sistema a 3 fasi e 4 fili

Sistema di raffreddamento:

Raffreddamento ad acqua

Dimensione dell'insieme (millimetri):

1485*700*1000mm~7300*2440*2800mm

Peso netto dell'insieme (chilogrammi):

Specificato

Potenza nominale (KW/1500RPM):

5-2250kva

Velocità:

1500/1800 giri/min

Tipo:

Tipo di trailer, tipo silenzioso, tipo di contenitore, tipo super silenzioso, frame aperto, tipo por

Potenza nominale:

20KW,30KW,40KW,50KW,80KW,100KW,200KW,300KW,800KW,1000KW,1200KW,1500KW,1800KW,2200KW

Applicazione:

Fabbrica, costruzione, fattoria, banca ecc

Utilizzo:

Unità comuni, unità in attesa

Colpo:

Colpo quattro

Logistica:

Trasporto dell'intera macchina o trasporto di smontaggio; Trasporto marittimo o ferroviario

Quantità di ordine minimo:

1 set

Prezzo:

Chat with supplier now for more details.

Imballaggi particolari:

Pacchetto nudo per macchine, pacchetto in legno per pezzi di ricambio o domanda di clienti.

Tempi di consegna:

18-30 giorni di lavoro Commissione di spedizione e data di consegna da negoziare.

Termini di pagamento:

MoneyGram, Western Union, T/T, D/P, D/A, L/C

Capacità di alimentazione:

100000set/mese

Evidenziare:

open frame diesel generator emergency

small diesel engine generator set

disaster relief diesel generator

Descrizione del prodotto

20KW Open-Frame Generator for Emergency Disaster Relief
Engineered for critical emergency response operations, this 20KW open-frame generator delivers reliable power in disaster-stricken areas where grid electricity is unavailable. Its robust construction and simple design make it ideally suited for rapid deployment in post-disaster scenarios, including earthquake zones, flood-affected regions, and hurricane-impacted areas.
Operational Advantages:
Rapid deployment capability for immediate power restoration
Fuel-efficient operation for extended use in resource-limited environments
Compatible with various fuel sources available in emergency situations
High reliability with minimal maintenance requirements
This 20KW generator serves as a vital power source for disaster relief teams, providing the essential electricity needed to save lives and support recovery efforts when conventional power infrastructure is compromised.
Critical Applications:
Powers emergency medical tents, field hospitals, and mobile clinics
Supports rescue equipment, communication systems, and lighting setups
Provides electricity for water purification systems and temporary shelters
Energizes charging stations for essential electronic devices
Emergency-Adapted Features: The generator's open-frame design ensures excellent heat dissipation during continuous operation and allows for quick maintenance and repairs—even in challenging field conditions. Its durable steel frame provides protection during transport over rough terrain, while the simple mechanical design enables operation by personnel with basic training.

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set 11

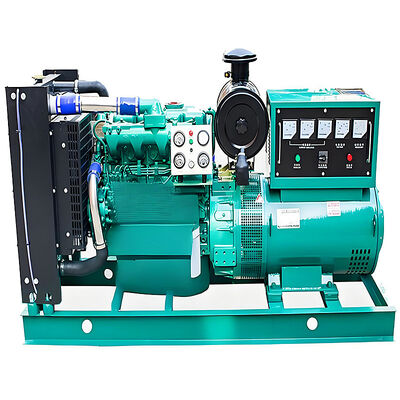

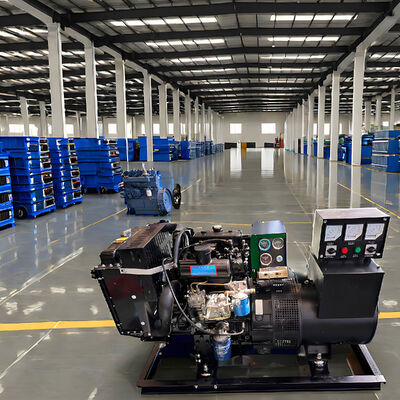

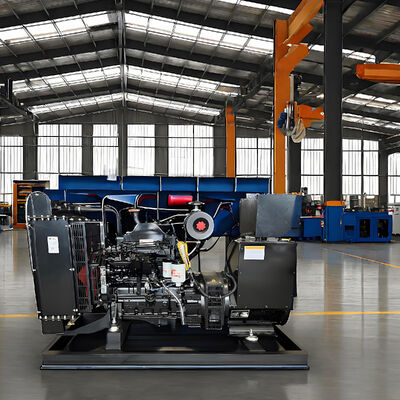

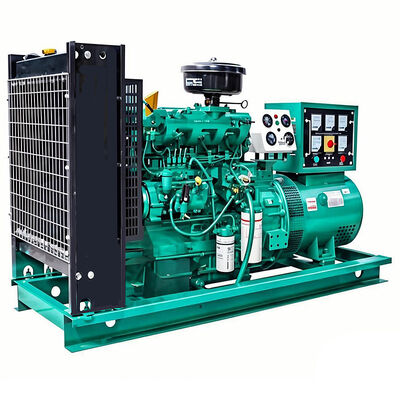

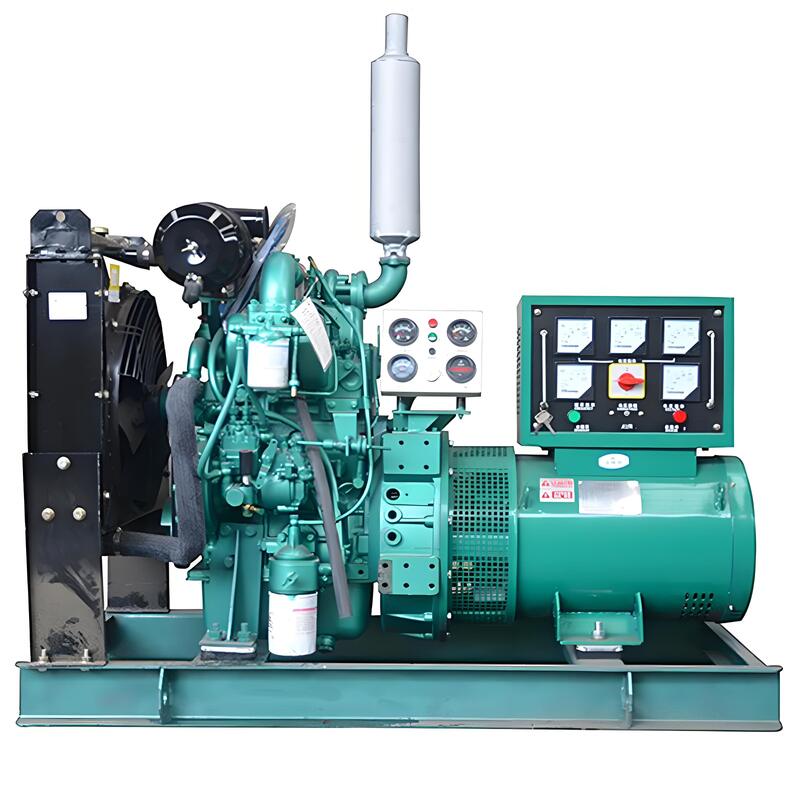

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set 12

Product descriptions from the supplier
100KVA 150KVA 200KVA 300KVA 400KVA 500KVA 700KVA Diesel Genset
"Contact us for specific product details or customized requirements"

Product Description

Product Name	Diesel generator
Engine	customized
Alternator	customized
Protection	genset shotdown when high water temperature,low oil pressure,shortcuit
Rated Power	20KW,30KW,40KW,50KW,80KW,100KW,200KW,300KW,800KW,1000KW,1200KW,1500KW, 1800KW,2200KW
Cylinder number	3,4,6,8,12cylinders
Cooling System Type	Water Cooling System
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Rated Voltage	48V, 110V, 220V, 230V, 240V, 380V, 400V, 415V, 480V
Speed	1500/1800
Frequency	50/60HZ
Diesel Engine	UK, USA, German, Japanese brand engines,4 stroke,water cooled

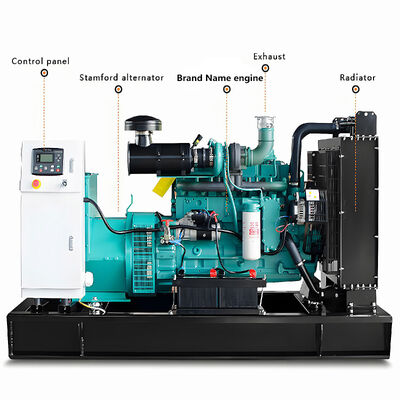

Alternator model	Stamford/Mecc alte brushless self-excited,IP23,Class H.
Power factor	0.8lagging
Noise level dB(a)	65-95/1m
Excitation	self-excitation
Phase Number and connection	3-phase 4-wire system
Dimension of set (mm)	*14857001000mm~730024402800mm*
